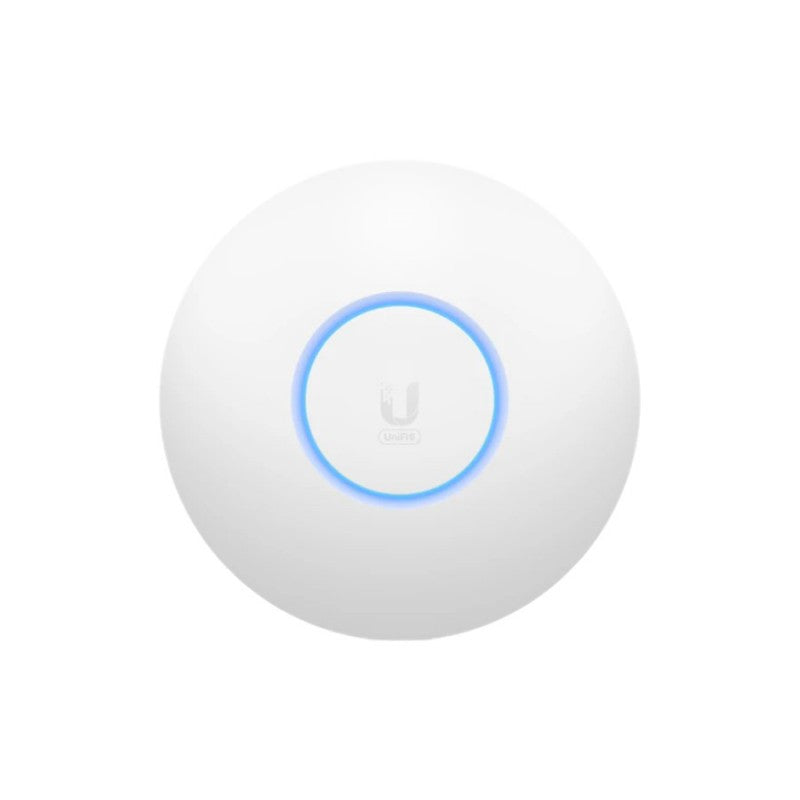

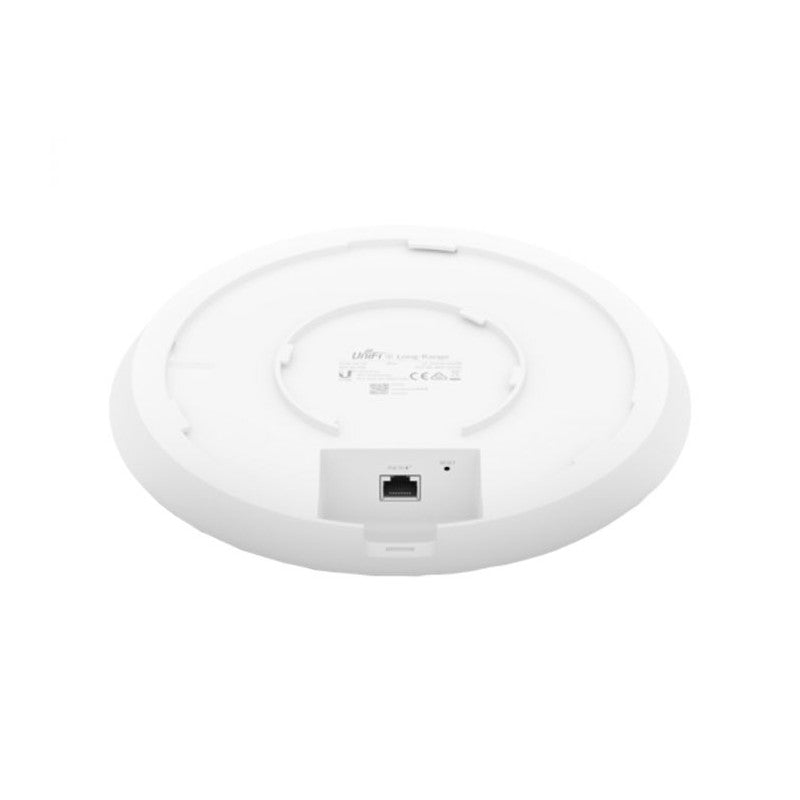

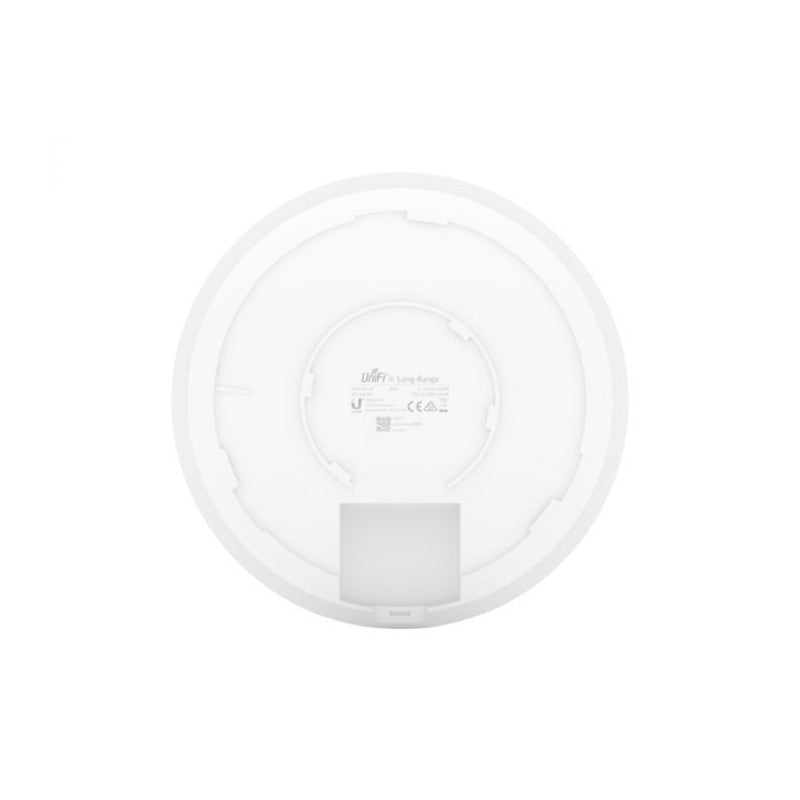

Ubiquiti Networks U6-LR UniFi 6 AX3000 Long-Range (Access Point)

Key Features
Wi-Fi 6 (802.11ax)
Up to 3000 Mb/s Throughput
2.4 GHz / 5 GHz (Dual-Band)
1 x PoE-Compliant Gigabit Ethernet Port
4 x 4 MU-MIMO and OFDMA Technologies
IP54 Rated for Semi-Outdoor Use
Wall and Ceiling Mountable

Ubiquiti Networks U6-LR Overview
Strengthen your business with fast and reliable wireless network connectivity with the U6-LR UniFi 6 AX3000 Long-Range Access Point from Ubiquiti Networks. This powerful 802.11ax Wi-Fi outdoor access point is designed to deliver up to 3000 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies, providing comprehensive coverage for enterprise environments. The U6-LR supports over 300 clients using 4 x 4 MU-MIMO and OFDMA technologies to help ensure solid and efficient connections to devices. This access point is IP54-rated for semi-outdoor environments and includes wall and ceiling mounting kits to blend seamlessly with most environments. It is powered by connecting it to a PoE-compliant switch or a separately purchased adapter.

Fast Wi-Fi
The UniFi 6 Long-Range Access Point supports 802.11ax Wi-Fi, delivering up to 2.4 Gb/s speeds on the 5 GHz frequency and 600 Mb/s through the 2.4 GHz signal. Four-stream MU-MIMO and OFDMA technologies help ensure fast and reliable connections to devices.

Flexible Mounting
This access point is IP54-rated for indoor and semi-outdoor environments and includes wall and ceiling mounting kits.

PoE Powered
The U6-LR is powered with 802.3at PoE when connected to a compatible switch or a separately purchased power adapter.

UniFi Network Controller
Single interface network management.
Intuitive and comprehensive device configuration, control, and monitoring.
Remote firmware upgrading.
Manage network users and guests.
Personalize the design, architecture, and privacy of guest hotspots.

Ubiquiti Networks U6-LR Specs

• Wireless
• Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
• Number of Antennas: 1
• MU-MIMO Support: 4 x 4
• Antenna Gain: 4 to 5.5 dBi
• Transmit Power: 26 dBm
• Antenna Placement: Internal
• Bluetooth: 5.0
• Throughput: 3000 Mb/s Total
• 5 GHz: 2400 Mb/s
• 2.4 GHz: 600 Mb/s

Interface
Inputs/Outputs: 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
USB Sharing Support: No

Security
Guest Network Support: Yes
Wireless Security: WPA, WPA-PSK, WPA-Enterprise, WPA2, WPA3

Management
Operation Modes: Access Point
Supported Clients: 300
Max SSIDs Supported: 16

Hardware
RAM: 512 MB
CPU: to 1.35 GHz Cortex A53 Dual-Core
Supported IEEE Standards: 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n

Electrical
DC Input Power: 44 57 VDC
Power Consumption: 16.5 W

Environmental
Operating Temperature: 2 to 92 F / -30 to 60 C
Operating Humidity: 5 to 95%
